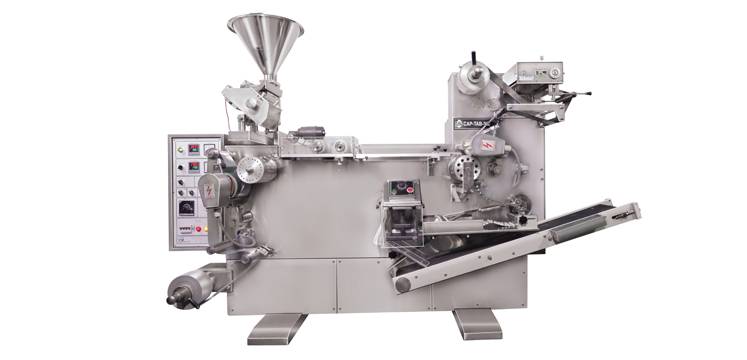

CAP-TAB-300 (DOUBLE TRACK)
Salient Features
- Fully automatic, high-speed system with continuous operation cycle mechanism for efficient packing. .
- Fully automatic tablet feeding unit with photo level control and controlled vibrator.
- A comparatively lengthy “Guide Track” for rigid inspection for missing fillings, if any.
- Crease proof sealing pattern to eliminate capillary formation of foil on sealing and knurling efficiency saves products from hygroscopic effects and ensures convenient passage through leak tests.
- Contact heating system with pneumatic actuation allows blister forming with even heating and save wastage of PVC after every stoppage.
- Universal type chain driven batch printing unit.
- Adaptable to change parts of other machines of similar design.
- Specially designed ergonomic and aesthetic partially electronic control panel board protects electrical operational components..
- Suitably designed framework and usage of high quality bought out components from trusted names make the operational system perfect.
- A fully automatic integrated system will high precession mechanism for efficient blister packing, versatility of this equipment suits your total packaging needs.
Packagable Products
- Tablets, Drugs, Hard / Soft Gelatin Capsules, Any Similar product of 12 mm (Cavity Depth), 110 mm (Length) and 25 mm (Width).
Packaging Material
1) Base Film
- Opaque, Transparent or colored thermo formable and non-toxic PVC, PVC with PVDC coating, PVC with PE/PVDC, ACLAR.
2) Material
- Aluminum (Hard) with Heat-Sealed lacquer or PVDC Coating & Child Resistance Type (Al-Al OR Al-Paper)
3) Operational Facilities (Available On Prior Intimation)
- In-Line Scoring Unit For Dispersing of Blister into Twos
- Thermoforming of Manufacturer’s / Product’s Name
- Printing Registration Control System ( P.R.C).
- Multi Product Packing Facility
- Injectable Packing Facility
- P.L.C. based operational system.
4) Necessary Equipment
For efficient functioning of this system we recommend the installation of
- A 5Hp Air Compressor of 200 liters air tank with a minimum pressure of 120 Lbs./8 Kg (at par with Ingersoll–Rand IR–242 air compressor)..
- A Water Chiller of 180 liters per hour capacity with a temperature drop of 170C.
- Any Suitable Equipment to maintain the Ambient Temperature of Working Environment Between 180C to 220C.
Output
- Strokes per minimum (max) - 150 Strokes (Sizes and No. of packs depend on selection of change parts).
Power Requirement
- 8 kw (415V, 3 Phase, 50HZ, AC Electric Supply if different please specify voltage required.
Dimension
- L X B X H = 3020 X865 X 1872mm.
Technical Specification
| Description | Range | CAP-TAB-300 |
|---|---|---|
| PVC Base Film | ||
| Max Width | 228mm | |
| Thickness | 0.25 to 0.35mm | |
| Max Reel Dia | 440mm | |
| Aluminium Foil | ||
| Max Width | 224mm | |
| Thickness | 0.025 to 0.035mm | |
| Max Reel Dia | 210mm | |
| Forming Area | ||
| Minimum | 220 x 25mm | |
| Maximum | 200 x 132mm | |
| Pack Length | Maximum | 220mm |
| Pack Width | Maximum | 140mm |
| Forming Depth (Can be extended up to 19mm) | - | 12mm |
